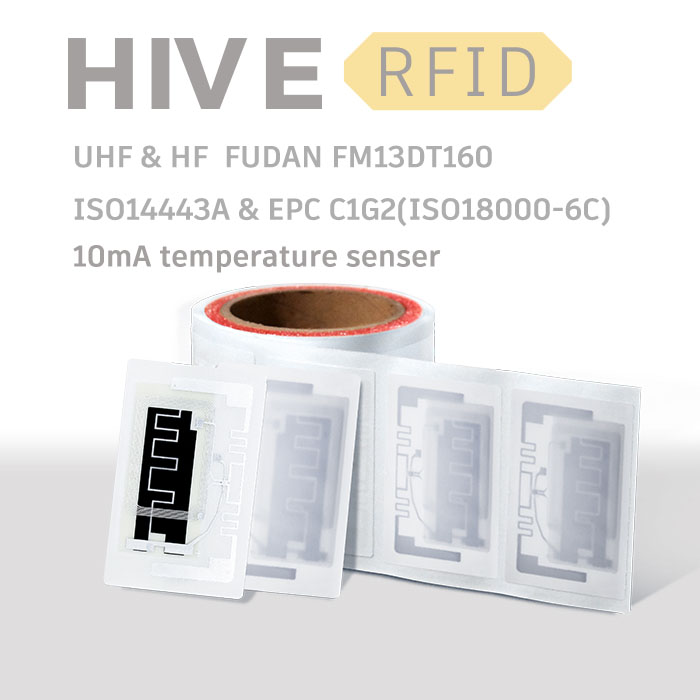

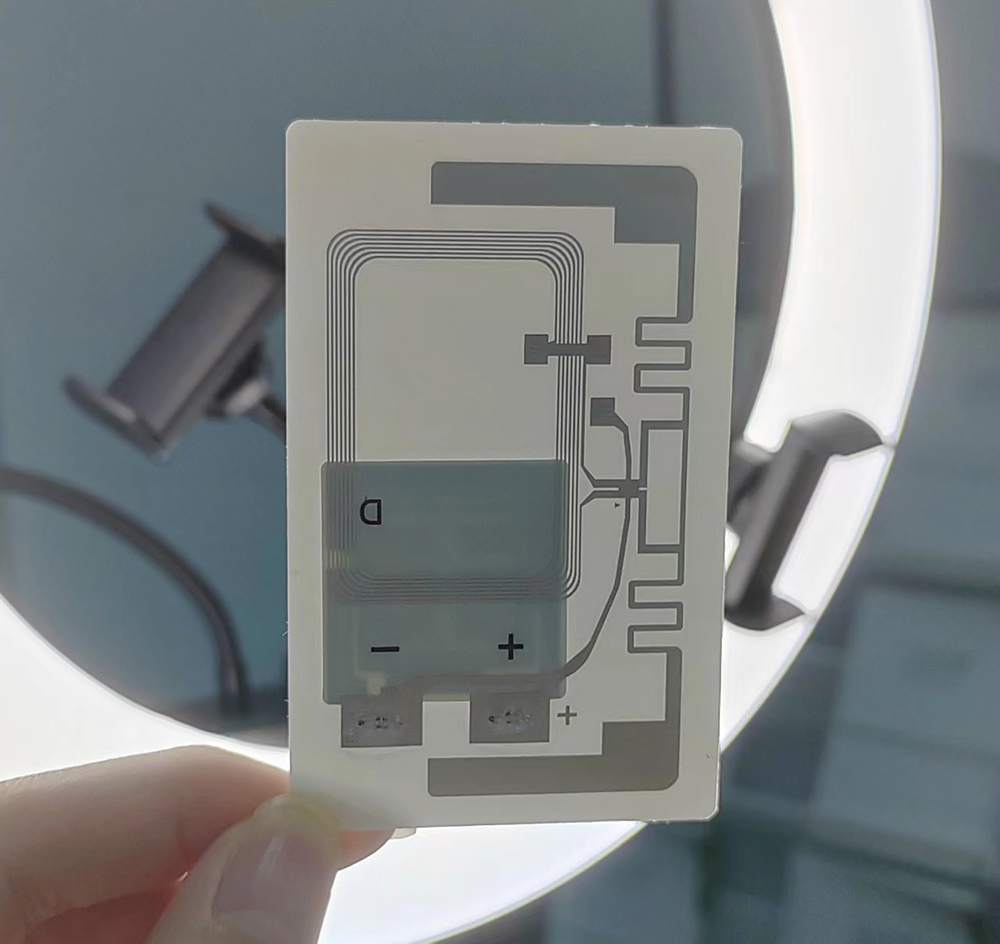

Dual Frequency UHF+HF RFID Temperature Sensor Logger for vaccine, pharmaceutical, and fresh cold chains
RFID temperature tags can be employed in vaccine, pharmaceutical, and fresh cold chains, as well as intelligent parcel management, to monitor and control temperature, ensuring product quality and safety throughout the cold chain. There is a paper battery with the tag,in which data can be stored offline to monitor temperature through out the process. These tags can continuously monitor and record the temperature of vaccines during transportation and storage, providing real-time data for analysis and ensuring that vaccines are stored at the appropriate temperature. This technology enables quick detection and correction of any temperature fluctuations or deviations, ensuring that the efficacy and safety of vaccines are maintained throughout the cold chain. It can store temperature data offline, Temperature data can be read by NFC cell phone
Parameters:
Label Size: 88.5×54mm with thickness 0.7mm (Antenna 77×44mm)
Quantity per Roll: 1000±2pcs
Frequency Application: 13.56MHz & 860-960Mhz
Standards: ISO14443A; EPC C1G2(ISO18000-6C)
Chip: FUDAN FM13DT160
Battery:1.5V/10mAh.
Battery Life: 6 months
Lifespan: read 20000 times max.
Antenna: Al 9μm + PET 50μm
Max.Reading Distance : 12cm
Working Mode: Passive
Anti-static Performance: 2000V
Operating Environment: -30℃~50℃， 20%-80% humidity
Application Environment: -25℃~50℃， 20%-90% humidity
Original Factory: supporting printing, barcode, QR code, encoding, and customization of size.
CE, RoHs, REACH, MRA,CMA and CNAS certified.
Built-in paper battery, conforms to airfreight standards
